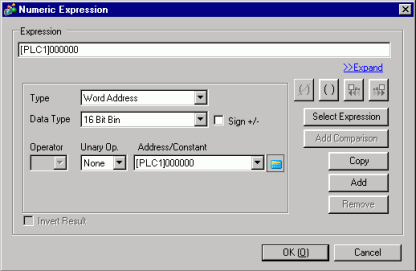

Conditional Expressions
Define the expression. You cannot type the expression.
Click to select a value.
Type
Select the type of conditional expression: [Word Address] or [Constant].
Word Address
Sets up word addresses in the expression.
Constant
Specify a value between 0 and 4294967295.
Data Type
Select the data type. If you set [Type] = [Word Address], select [16 Bit Bin], [16 Bit BCD], [32 Bit Bin] or [32 Bit BCD]. If you set [Type] = [Constant], select [Dec], [Hex] or [Oct].
Sign +/-
Defines negative number support for display data. Set up when you want to display negative values. Negative values are handled using 2's Complement.
This is available when the [Data Type] is [16 Bit Bin] or [32 Bit Bin].
Operator
If you have added an address or a value to the expression using [Copy] or [Add], select an operator from [+], [-], [/], [*], [&], [|], [^], [%], [<<], and [>>].
Unary Op.
Select an Unary operator from [-], [~], and [None].
Value
Specify an address if the [Type] is [Word Address], or a value if the [Type] is [Constant].
Expand
Enlarges the script Expression area.
Removes parentheses set up with
.
Adds parentheses around the selected portion of the expression.
Moves the selected portion to the left side of the operator.
Moves the selected portion to the right side of the operator.
Select Expression
Selects the entire expression.
Add Comparison
Adds a condition to the expression.
Copy
Copies and adds the selected expression.
Add
Adds a part of the expression.
Delete
Removes a portion of the expression. You cannot select and delete the entire expression. If the expression contains a comparison, you cannot delete any part of the expression.
