	Introduction
	Summary
	Remote RAS setting procedure
	Publication Record

Introduction

Thank you very much for purchasing the Digital Electronics Corporation's product.
Please be sure to read this file's information carefully to familiarize yourself with both the unit's correct operation procedures and its features.

1.	It is forbidden to copy the contents of this manual in whole, or in part, without the permission of the Digital Electronics Corporation.
2.	The information in this manual is subject to change without notice.
3.	This manual was written with care; however, if you find any error or omissions, please contact Digital Electronics Corporation and inform them of your findings.
4.	Please be aware that Digital Electronics Corporation is not responsible for any damages resulting from the use of our products.
5.	All product names that appear in this document are the trademarks of their respective companies.
6.	Even though the information contained in and displayed by this product may be related to intangible or intellectual properties of the Digital Electronics Corporation or third parties,

Return to Top

Summary

This setting procedure shows the device setting and monitoring steps. For other functions of Pro-Server EX, refer to "Pro-Server EX Reference Manual." Regarding the restrictions for monitoring, refer to the pages related to Remote RAS settings of the operation / reference manual for the applicable model.

Return to Top

Remote RAS setting procedure

	1. Copying Remote RAS setting file
	2. Pro-Studio How to start Pro-Studio EX
	3. Addition and Edit of Node
	4. Addition and Edit of Symbol
	5. Saving a project file and reloading
	6. Status Monitor

Return to Top

1. Copying Remote RAS setting file

Copy the Remote RAS setting file [PL_RAS. TBL] to the save folder (Default: C: \ Program Files \ Pro-face \ Pro-Server EX \ PLCTBL) of the Pro-Server EX table file.

* Copy the Remote RAS setting file when Pro-Server EX is not started.

Return to Remote RAS setting procedure

2. How to start Pro-Studio EX

2.1 When Pro-Server EX is started, the Pro-Server EX icon is in the taskbar. Right-click on the icon to select "Start Pro-Studio EX" on the menu.

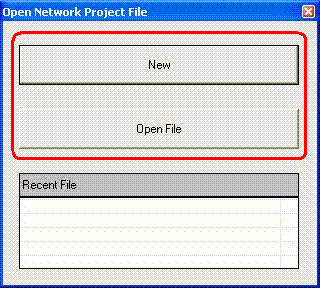

2.2 When Pro-Studio EX is started, the "Open Network Project File" dialog appears. Click [New] button or [Open File] button.

Return to Remote RAS setting procedure

3. Addition and Edit of Node

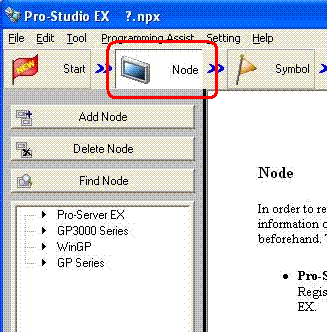

3.1 Click the "Node" icon on the status bar to display the picture below on the left side of the screen.

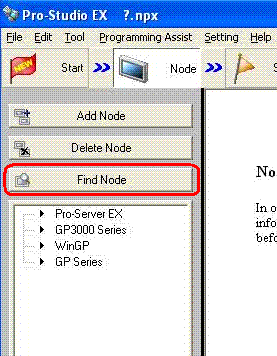

3.2 Click [Find Node].

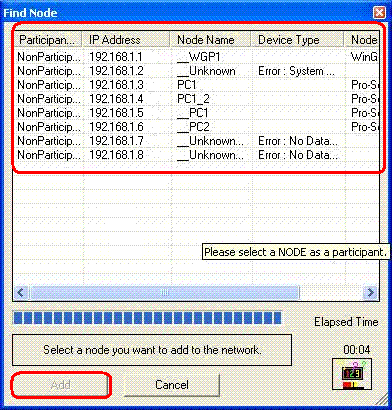

3.3 The "Find Node" dialog is displayed. Check for an IP address of the target IPC and select a corresponding node, then click [Add] button.

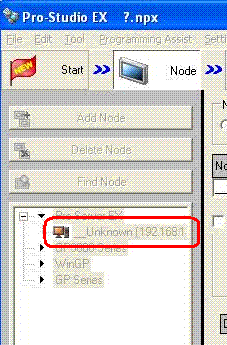

3.4 The added node is displayed in the tree list on the left side of the screen.

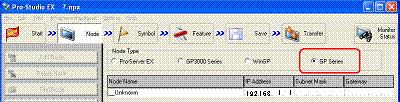

3.5 Select the added node and check "GP series" in "Node Type".

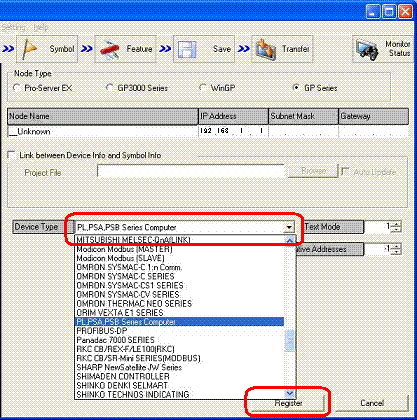

3.6 Select [PL, PSA, PSB series Computer] from the Device Type pull-down menu. Click [Register] button.

3.7 The added node is moved under the [GP series].

Return to Remote RAS setting procedure

4. Addition and Edit of Symbol

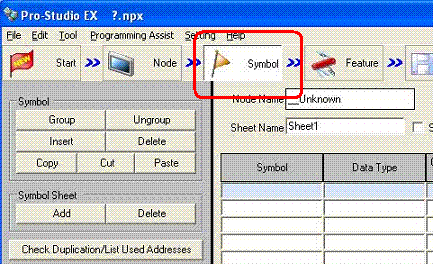

4.1 Click [Symbol] icon on the status bar to display the screen below on the left side of the screen.

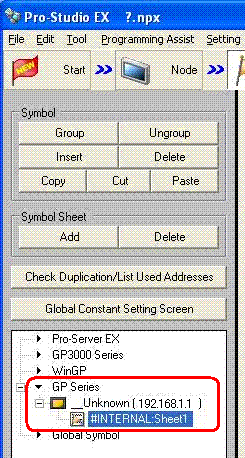

4.2 Select [#INTERNAL: Sheet1] under the added node to display a symbol sheet on the right side of the screen.

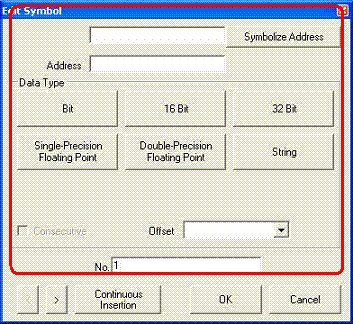

4.3 Double-click on the "Symbol" column in the symbol sheet to display the "Edit Symbol" dialog. In the "Edit Symbol" dialog, register a device to be monitored in reference to the Device Address List in the reference manual for the target model. Then, click [OK] button.

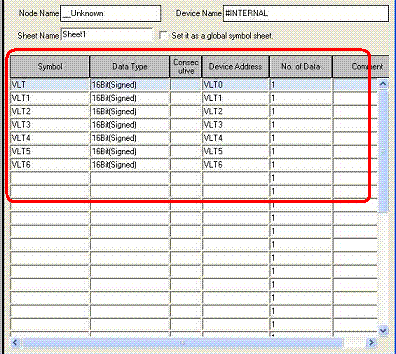

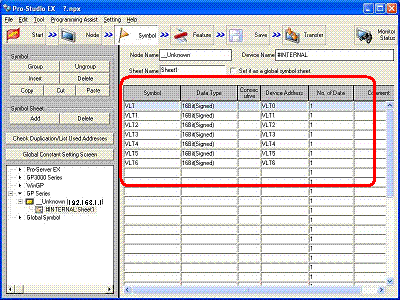

4.4 When a symbol is added in the "Symbol Edit" dialog, the symbol is added in the symbol sheet.

Return to Remote RAS setting procedure

5. Saving a project file and reloading

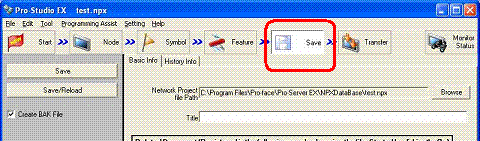

5.1 Click [Save] icon on the status bar to display the screen below.

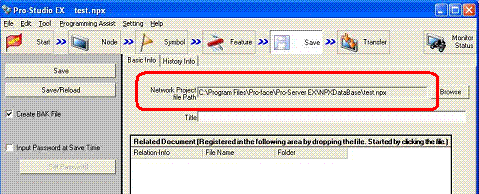

5.2 Click [Save / Reload] button on the left side of the screen to save and reload the current network project. The reloaded network project is displayed in the [Network Project file Path].
