Language Addition for Windows XP Embedded

Japanese

Introduction
Limitations
Preparations
Downloading files
Extracting files
Installation
Change to the added language
FAQ

Introduction

Thank you very much for purchasing the Digital Electronics Corporation's product.
Please be sure to read this file's information carefully to familiarize yourself with both the unit's correct operation procedures and its features.

1. It is forbidden to copy the contents of this manual in whole, or in part, without the permission of the Digital Electronics Corporation.
2. The information in this manual is subject to change without notice.
3. This manual was written with care; however, if you find any error or omissions, please contact Digital Electronics Corporation and inform them of your findings.
4. Please note that we assume no responsibility whatsoever for damages resulting from the use of this product, liabilities, or any claims by third parties.
5. All product names that appear in this document are the trademarks of their respective companies.
6. Even though the information contained in and displayed by this product may be related to intangible or intellectual properties of the Digital Electronics Corporation or third parties, the Digital Electronics Corporation shall not warrant or grant the use of said properties to any users and/or other third parties.
Top of Page

Limitations

- When a language is added, "User" needs to be "Administrator" for installation.
- Once you install this installer, you cannot uninstall the languages to be installed.
- Two or more languages cannot be installed at the same time. Install one language at a time.
Top of Page

Preparations

- User
When a new user has already been added, log on with "Administrator" in accordance with the procedure below.
* For this procedure, a keyboard is required.
1 Log off the Windows.
2 On the user selection screen that you log on, press the [Ctrl] + [Alt] + [Delete] keys twice.
3 The following screen appears. Enter "Administrator" for "User name" and then click [OK].

- Write Filter
Disable the Write Filter in accordance with the procedure below.
1 From the "Start" menu, open "Designate file name and run", and start up the following executable file.
2
C:\Proface\EWFSettingTool\EWFSettingTool.exe

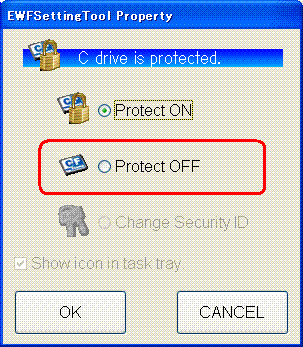

3 The following screen appears. Select "Protect OFF" and click [OK].
4 When the confirmation message "Do you want to change the Write Filter settings?" appears, click [OK].
5 The XPE restarts automatically. After that, the Write Filter setting becomes disabled.

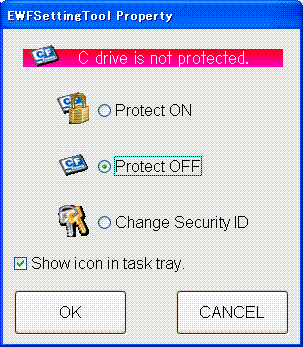

When the Write Filter setting is disabled, the following screen appears.
* For details on the Write Filter function, refer to "Windows XP Embedded Reference Manual".

- Language
Set the language to "English".
If other language than English is used, switch it to English.
* Regarding how to set the language to English, refer to "Windows XP Embedded Reference Manual".
Top of Page

Downloading files

Click the file name of the language that you wish to add, and download it to the appropriate folder.
Files and languages to be added are shown in the list below.
Download File Installer Language Free space required (MB)
Arabic_***.exe Arabic.exe Arabic 48
Brazilian_***.exe Brazilian.exe Portuguese(Brazil) 30
Chinese_***.exe Chinese.exe Simplified Chinese
Traditional Chinese (including Taiwanese)
142
Czech_***.exe Czech.exe Czech 31
Danish_***.exe Danish.exe Danish 29
Dutch_***.exe Dutch.exe Dutch 30
Finnish_***.exe Finnish.exe Finnish 30
Greek_***.exe Greek.exe Greek 32
Hebrew_***.exe Hebrew.exe Hebrew 49
Hungarian_***.exe Hungarian.exe Hungarian 28
Korean_***.exe Korean.exe Korean 73
Norwegian_***.exe Norwegian.exe Norwegian 29
Polish_***.exe Polish.exe Polish 31
Portuguese_***.exe Portuguese.exe Portuguese 30
Russian_***.exe Russian.exe Russian 30
Swedish_***.exe Swedish.exe Swedish 29
Turkish_***.exe Turkish.exe Turkish 29

Top of Page

Extracting files

Downloaded files are self-extracting ones.
To extract the file, double-click it.
The installer file is extracted in the same location as the downloaded file.

<Example>

Top of Page

Installation

Before installation, confirm that the CF card has a sufficient free space shown in "Free space required" in the list of the "Downloading files" section above.
Execute the extracted installer file to start the installation.
1 Double-click the installer file.

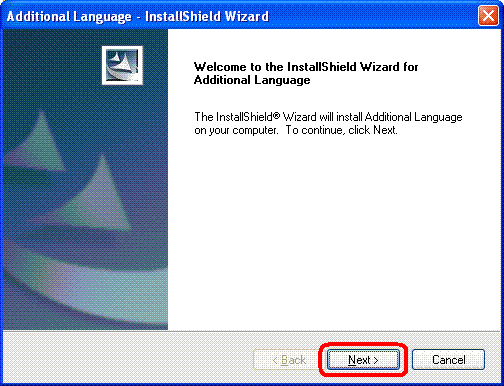

2 Click [Next].

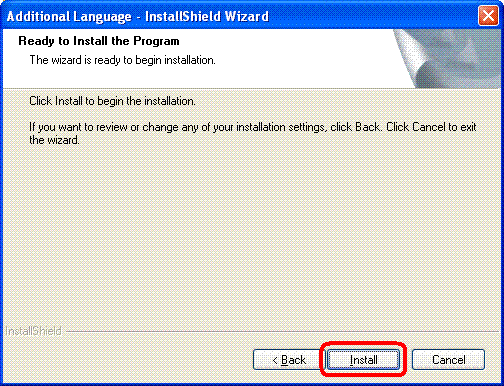

3 Click [Install] to start the installation.

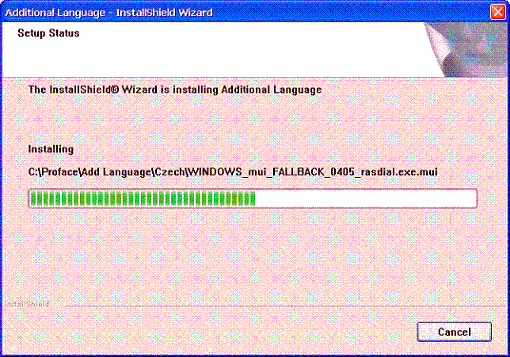

4 File copy is started.

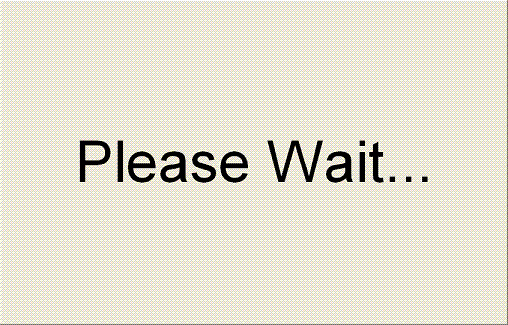

5 "Please Wait…" is displayed for a few minutes and Windows restarts automatically.
No operation is prohibited until this automatic restart is completed.
* Do not turn off the power until this automatic restart is completed.
6 After the restart, "Please Wait…" is displayed again.
When it is closed, installation is completed.
Top of Page

Change to the added language

From the "Start" menu, open "Designate file name and run", and start up the following executable file.
C:\Proface\LangShell\LangShell.exe
When this file is started, Windows restarts automatically.

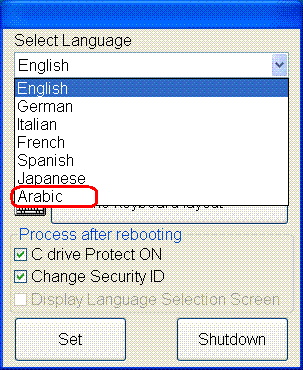

After the restart, the language selection screen is displayed. Select the added language on the screen and click [Set].
<Example>
When Arabic is added
Top of Page

FAQ

FAQ
No. Item
Q1 What are the language settings in "Select Language"?
Q2 What would happen when the CF card is full during installation?
Q3 What would happen if I execute the already-executed installer once again?
Q4 What should I do if the installed language has not been added successfully?
Q5 What should I do if "Please Wait…" remains displayed and Windows is not restarted after installation?
Q6 What should I do if the language setting is inappropriate?
Q7 What should I do if the "Welcome" screen during startup is displayed with the garbled characters?
Top of Page

Q1.What are the language settings in "Select Language"?


A1. See the settings below.

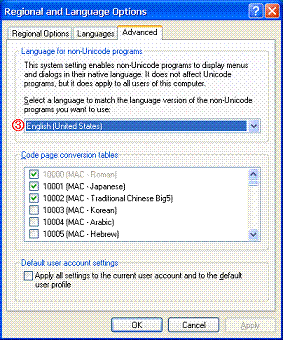

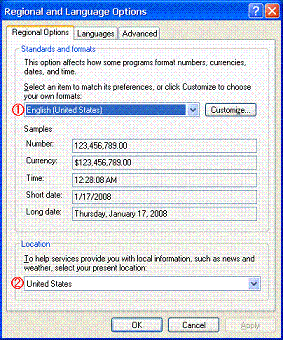

Regional and Language Options
Select Language
Arabic Arabic [Saudi Arabia] Saudi Arabia Arabic [Saudi Arabia]
Brazilian Portuguese [Brazil] Brazil Portuguese [Brazil]
Chinese(Simplified) Chinese [PRC] China Chinese [PRC]
Chinese(Traditional) Chinese [Taiwan] China Chinese [Taiwan]
Czech Czech Czech Republic Czech
Danish Danish Denmark Danish
Dutch Dutch [Netherlands] Netherlands, The Dutch [Netherlands]
English English [United States] United States English [United States]
Finnish Finnish Finland Finnish
French French [France] France French [France]
German German [Germany] Germany German [Germany]
Greek Greek Greece Greek
Hebrew Hebrew Israel Hebrew
Hungarian Hungarian Hungary Hungarian
Italian Italian [Italy] Italy Italian [Italy]
Japanese Japanese Japan Japanese
Korean Korean Korea Korean
Norwegian Norwegian [Bokmal] Norway Norwegian [Bokmal]
Polish Polish Poland Polish
Portuguese Portuguese [Portugal] Portugal Portuguese [Portugal]
Russian Russian Russia Russian
Spanish Spanish [Spain] Spain Spanish [Spain]
Swedish Swedish Sweden Swedish
Turkish Turkish Turkey Turkish
FAQ of Page

Q2.What would happen when the CF card is full during installation?


A2. The error message will appear and installation will be terminated.
Before installation, confirm that the CF card has a sufficient free space shown in "Free space required" in the list of the "Downloading files" section above.
FAQ of Page

Q3.What would happen if I execute the already-executed installer once again?


A3. Installation is executed again.
FAQ of Page

Q4.What should I do if the installed language has not been added successfully?


A4. The Write Filter function may be enabled.
Referring to "Write Filter" in "Preparations", confirm that the Write Filter is disabled.
FAQ of Page

Q5.What should I do if "Please Wait…" remains displayed and Windows is not restarted after installation?


A5. "User" needs to be "Administrator" for installation.
When a new user has already been added, log on with "Administrator" in accordance with the procedure in "User" of "Preparations".
FAQ of Page

Q6.What should I do if the language setting is inappropriate?


A6. According to the procedure below, make the correct setting.
1 From the "Start" menu, open "Designate file name and run", and start up the following executable file.
C:\Proface\LangShell\LangShell.exe
2 The language selection screen is displayed. Specify "English" from the "Select Language" pull-down menu and click [Set].
3 When the Windows is started up in English, take the step 1 above again.
4 On the language selection screen, select the language you wish to use from the "Select Language" pull-down menu and click [Set].
FAQ of Page

Q7.What should I do if the "Welcome" screen during startup is displayed with the garbled characters?


A7. This may occur depending on the language you have selected.
This phenomenon may occur during startup immediately after the language has been specified.
From the next startup, the "Welcome" screen will be displayed normally in the language you have selected.
FAQ of Page
